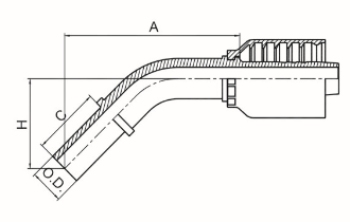

| 代 号 PART NO. | 胶 管 HOSE BORE | 管子外径 | 尺寸 DIMENSIONS | 备注 | ||||
| 编织 BRAIDED | 缠绕 SPIRAL | 公称内径 DN | 标号DASH | TUBE O.D. | A | C | H | NOTE |
| 50041-06-04RW | -- | 6 | 04 | 6 | 53.7 | 22 | 30.1 |
轻 系 列 |
| 50041-08-05RW | -- | 8 | 05 | 8 | 57.2 | 24 | 32.4 | |
| 50041-08-06RW | -- | 10 | 06 | 8 | 58.9 | 24 | 33.1 | |
| 50041-10-05RW | -- | 8 | 05 | 10 | 55.5 | 23 | 30.6 | |
| 50041-10-06RW | -- | 10 | 06 | 10 | 57.1 | 23 | 31.3 | |
| 50041-12-06RW | -- | 10 | 06 | 12 | 59.5 | 23 | 34.5 | |
| 50041-12-08RW | 50042-12-08RW | 12 | 008 | 12 | 72.9 | 23 | 37.4 | |
| 50041-15-06RW | 50042-15-06RW | 10 | 06 | 15 | 60.3 | 25 | 34.5 | |
| 50041-15-08RW | 50042-15-08RW | 12 | 08 | 15 | 71.1 | 25 | 35.7 | |
| 50041-18-08RW | 50042-18-08RW | 12 | 08 | 18 | 73.9 | 26 | 38.5 | |
| 50041-18-10RW | 50042-18-10RW | 16 | 10 | 18 | 86.1 | 26 | 39.8 | |
| 50041-22-10RW | 50042-22-10RW | 16 | 10 | 22 | 88.6 | 28 | 42.3 | |
| 50041-22-12RW | 50042-22-12RW | 20 | 12 | 22 | 93.3 | 28 | 45.9 | |
| 50041-22-16RW | 50042-22-16RW | 25 | 16 | 22 | 103.1 | 28 | 46.7 | |
| 50041-28-16RW | 50042-28-16RW | 25 | 16 | 28 | 105.9 | 30 | 49.5 | |
| 50041-35-20RW | 50042-35-20RW | 32 | 20 | 35 | 119.7 | 36 | 57.8 | |
| 50041-42-24RW | 50042-42-24RW | 40 | 24 | 42 | 112.3 | 40 | 59.6 | |
| 50041-08-04RW | -- | 6 | 04 | 8 | 55.1 | 24 | 31.5 |
重 系 列 |
| 50041-08-05RW | -- | 8 | 05 | 8 | 57.2 | 24 | 32.4 | |
| 50041-08-06RW | -- | 10 | 06 | 8 | 58.9 | 24 | 33.1 | |
| 50041-10-04RW | -- | 6 | 04 | 10 | 55.5 | 26 | 31.9 | |
| 50041-12-04RW | -- | 6 | 04 | 12 | 58.6 | 26 | 35.1 | |
| 50041-12-05RW | -- | 8 | 05 | 12 | 60.7 | 26 | 35.9 | |
| 50041-14-06RW | -- | 10 | 06 | 14 | 62.6 | 29 | 37.3 | |
| 50041-14-08RW | 50042-14-08RW | 12 | 08 | 14 | 74.3 | 29 | 38.8 | |
| 50041-14-12RW | 50042-14-12RW | 20 | 12 | 14 | 91.9 | 29 | 43.8 | |
| 50041-16-08RW | 50042-16-08RW | 12 | 08 | 16 | 77.1 | 30 | 41.7 | |
| 50041-16-10RW | 50042-16-10RW | 16 | 10 | 16 | 89.3 | 30 | 43 | |
| 50041-20-10RW | 50042-20-10RW | 16 | 10 | 20 | 94.3 | 36 | 48 | |
| 50041-20-12RW | 50042-20-12RW | 20 | 12 | 20 | 100.7 | 36 | 52.6 | |
| 50041-25-12RW | 50042-25-12RW | 20 | 12 | 25 | 101.8 | 40 | 54.4 | |
| 50041-25-16RW | 50042-25-16RW | 25 | 16 | 25 | 111.6 | 40 | 55.2 | |
| 50041-30-16RW | 50042-30-16RW | 25 | 16 | 30 | 115.8 | 44 | 59.4 | |
| 50041-30-20RW | 50042-30-20RW | 32 | 20 | 30 | 125.4 | 44 | 63.5 | |
| 50041-38-16RW | 50042-38-16RW | 25 | 16 | 38 | 120.1 | 50 | 63.6 | |
| 50041-38-20RW | 50042-38-20RW | 32 | 20 | 38 | 129.6 | 50 | 67.7 | |
