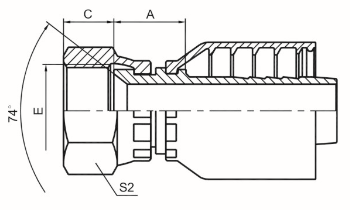

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | S2 |
| 20711-10-04RW | -- | M10X1 | 6 | 04 | 16.5 | 7.5 | 14 |
| 20711-12-04RW | -- | M12X1.5 | 6 | 04 | 16.5 | 10 | 17 |
| 20711-14-04TRW | -- | M14X1.5 | 6 | 04 | 14.5 | 8.5 | 19 |
| 20711-14-05RW | -- | M14X1.5 | 8 | 05 | 17 | 8.5 | 19 |
| 20711-14-06RW | -- | M14X1.5 | 10 | 06 | 17 | 8.5 | 19 |
| 20711-16-04TRW | -- | M16X1.5 | 6 | 04 | 15 | 8 | 22 |
| 20711-16-05TRW | -- | M16X1.5 | 8 | 05 | 15 | 8 | 22 |
| 20711-16-06RW | -- | M16X1.5 | 10 | 06 | 18 | 8 | 22 |
| 20711-18-05TRW | -- | M18X1.5 | 8 | 05 | 16 | 8 | 22 |
| 20711-18-06RW | -- | M18X1.5 | 10 | 06 | 19 | 10 | 24 |
| 20711-20-06TRW | -- | M20X1.5 | 10 | 06 | 16 | 10 | 24 |
| 20711-20-08RW | 20712-20-08RW | M20X1.5 | 12 | 08 | 20.5 | 10 | 27 |
| 20711-22-08TRW | 20712-22-08TRW | M22X1.5 | 12 | 08 | 17 | 10 | 27 |
| 20711-22-10RW | 20712-22-10RW | M22X1.5 | 16 | 10 | 21 | 10 | 27 |
| 20711-24-08TRW | 20712-24-08TRW | M24X1.5 | 12 | 08 | 17 | 11 | 30 |
| 20711-27-08TRW | 20712-27-08TRW | M27X1.5 | 12 | 08 | 19 | 11 | 32 |
| 20711-27-10TRW | 20712-27-10TRW | M27X1.5 | 16 | 10 | 19.5 | 11 | 32 |
| 20711-30-10TRW | 20712-30-10TRW | M30X1.5 | 16 | 10 | 20 | 11 | 36 |
| 20711-30-12TRW | 20712-30-12TRW | M30X1.5 | 20 | 12 | 19 | 13 | 36 |
| 20711-33-12TRW | 20712-33-12TRW | M33X2 | 20 | 12 | 18.5 | 13 | 41 |
| 20711-36-16TRW | 20712-36-16TRW | M36X2 | 25 | 16 | 21.7 | 14 | 41 |
| 20711-39-16TRW | 20712-39-16TRW | M39X2 | 25 | 16 | 24.7 | 14 | 46 |
| 20711-42-16TRW | 20712-42-16TRW | M42X2 | 25 | 16 | 23.7 | 15 | 50 |
| 20711-42-20WRW | 20712-42-20WRW | M42X2 | 32 | 20 | 30.2 | 15 | 50 |
| 20711-45-20TRW | 20712-45-20TRW | M45X2 | 32 | 20 | 23.7 | 15 | 55 |
| 20711-52-24TRW | 20712-52-24TRW | M52X2 | 40 | 24 | 24.5 | 17 | 60 |
