公制卡套式直管 DIN 2353

获取优惠报价在线咨询

产品标签

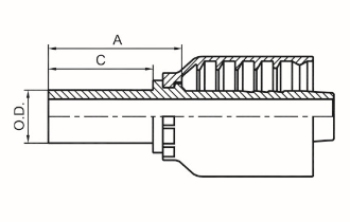

代号 PART NO.		胶管 HOSE BORE		管子外径	尺寸 DIMENSIONS		备注
编织 BRAIDED	缠绕 SPIRAL	公称内径 DN	标号DASH	TUBE O.D.	A	C	NOTE
50011-06-04RW	--	6	04	6	30.5	22	轻系列
50011-10-05RW	--	8	05	10	32.5	23
50011-10-06RW	--	10	06	10	33	23
50011-12-06RW	--	10	06	12	34.5	23
50011-12-08RW	50012-12-08RW	12	08	12	33.5	23
50011-15-06RW	50012-15-06RW	10	06	15	36.5	25
50011-15-08RW	50012-15-08RW	12	08	15	16	25
50011-18-08RW	50012-18-08RW	12	08	18	37	26
50011-18-10RW	50012-18-10RW	16	10	18	42.5	26
50011-22-10RW	50012-22-10RW	16	10	22	45.5	28
50011-22-12RW	50012-22-12RW	20	12	22	44	28
50011-22-16RW	50012-22-16RW	25	16	22	48.2	28
50011-28-16RW	50012-28-16RW	25	16	28	49.2	30
50011-35-20RW	50012-35-20RW	32	20	35	57.2	36
50011-42-24RW	50012-42-24RW	40	24	42	64	40
50011-08-04RW	--	6	04	8	32.5	24	重系列
50011-08-05RW	--	8	05	8	34.5	24
50011-08-06RW	--	10	06	8	34	24
50011-10-04RW	--	6	04	10	36.5	26
50011-12-04RW	--	6	04	12	36	26
50011-12-05RW	--	8	05	12	37	26
50011-14-06RW	--	10	06	14	40.5	29
50011-14-08RW	50012-14-08RW	12	08	14	40.5	29
50011-14-12RW	50012-14-12RW	20	12	14	45.5	29
50011-16-08RW	50012-16-08RW	12	08	16	41.5	30
50011-16-10RW	50012-16-10RW	16	10	16	47	30
50011-20-10RW	50012-20-10RW	16	10	20	54	36
50011-20-12RW	50012-20-12RW	20	12	20	52.5	36
50011-25-12RW	50012-25-12RW	20	12	25	56	40
50011-25-16RW	50012-25-16RW	25	16	25	59.2	40
50011-30-16RW	50012-30-16RW	25	16	30	65.2	44
50011-30-20RW	50012-30-20RW	32	20	30	65.2	44
50011-38-16RW	50012-38-16RW	25	16	38	71.2	50
50011-38-20RW	50012-38-20RW	32	20	38	72	50
