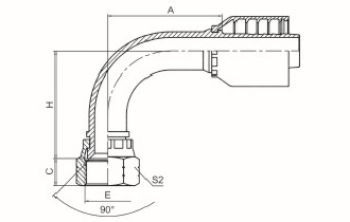

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | H | S2 |
| 27891-04-04RW | -- | 7/16”X20 | 6 | 04 | 31.5 | 9 | 33.5 | 15 |
| 27891-05-05RW | -- | 1/2”X20 | 8 | 05 | 34.5 | 9.5 | 37 | 17 |
| 27891-06-04RW | -- | 5/8”X18 | 6 | 04 | 31.5 | 11.3 | 35.5 | 22 |
| 27891-06-05RW | -- | 5/8”X18 | 8 | 05 | 34.5 | 11.3 | 38.5 | 22 |
| 27891-06-06RW | 27892-08-08RW | 5/8”X18 | 10 | 06 | 36.3 | 11.3 | 40.8 | 22 |
| 27891-08-08RW | 27892-10-08RW | 3/4”X16 | 12 | 08 | 42.5 | 11 | 47.5 | 24 |
| 27891-10-08RW | 27892-10-10RW | 7/8”X14 | 12 | 08 | 42.5 | 13 | 48 | 27 |
| 27891-10-10RW | 27892-12-12RW | 7/8”X14 | 16 | 10 | 57 | 13 | 52.5 | 27 |
| 27891-12-12RW | 27892-16-16RW | 1.1/16”X14 | 20 | 12 | 63.2 | 14.3 | 60.5 | 32 |
