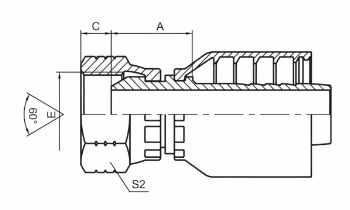

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | S2 |
| 21611-04-04RW | -- | 1/4”X18 | 6 | 04 | 19.5 | 4.6 | 19 |
| 21611-04-06RW | -- | 1/4”X18 | 10 | 06 | 19.5 | 1.6 | 19 |
| 21611-06-04RW | -- | 3/8”X18 | 6 | 04 | 20.7 | 6 | 22 |
| 21611-06-05RW | -- | 3/8”X18 | 8 | 05 | 20.7 | 6 | 22 |
| 21611-06-06RW | -- | 3/8”X18 | 10 | 06 | 20.7 | 6 | 22 |
| 21611-08-08RW | 21612-08-08RW | 1/2”X14 | 12 | 08 | 23.5 | 7.5 | 27 |
| 21611-12-10RW | 21612-12-10RW | 3/4”X14 | 16 | 10 | 25 | 8.9 | 32 |
| 21611-12-12RW | 21612-12-12RW | 3/4”X14 | 20 | 12 | 24.5 | 8.9 | 32 |
| 21611-16-12TRW | 21612-16-12TRW | 1”X11.5 | 20 | 12 | 22.3 | 10.5 | 41 |
| 21611-16-16RW | 21612-16-16RW | 1”X11.5 | 25 | 16 | 28.5 | 10.5 | 41 |
| 21611-20-20WRW | 21612-20-20WRW | 1.1/4”X11.5 | 32 | 20 | 34.7 | 11.2 | 50 |
| 21611-24-20TRW | 21612-24-20TRW | 1.1/2”X11.5 | 32 | 20 | 28.2 | 11.2 | 55 |
| 21611-24-24WRW | 21612-24-24WRW | 1.1/2”X11.5 | 40 | 24 | 35.5 | 11.2 | 55 |
| 21611-32-32WRW | 21612-32-32WRW | 2”X11.5 | 50 | 32 | 37.5 | 11.2 | 70 |
