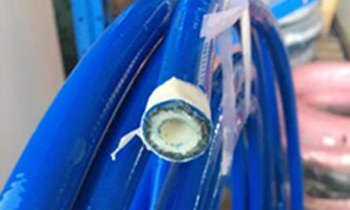

两层纤维编织树脂管部分规格参数：
|
软管尺寸 HOSE SIZE |
内径X外径 |
额定工作压力 |
最小爆破压力 |
最小弯曲半径MIN.BEND RADIUS |
参考重量 |
内外径公差 |
||||
|
inch |
Dash |
DN |
mm |
Bar |
psi |
Bar |
psi |
（mm） |
Kg/m |
mm |
|
3/16" |
03 |
4.8 |
4.8*10.3 |
250 |
3620 |
1000 |
14500 |
55 |
70 |
±0.1mm |
|
1/4" |
04 |
6 |
6.3*12.7 |
250 |
36200 |
1000 |
14500 |
75 |
110 |
±0.1mm |
|
1/4" |
04 |
6 |
6.3*13.3 |
275 |
3980 |
1100 |
15950 |
75 |
125 |
±0.1mm |
|
5/16" |
05 |
8 |
7.9*15 |
260 |
3770 |
1050 |
15230 |
85 |
150 |
±0.1mm |
|
3/8" |
06 |
10 |
9.5*18 |
250 |
3620 |
1000 |
14500 |
100 |
210 |
±0.1mm |
|
1/2" |
08 |
13 |
12.7*19.8 |
160 |
2320 |
640 |
9280 |
140 |
260 |
±0.15mm |
|
1/2" |
08 |
13 |
12.7*21.6 |
210 |
3040 |
840 |
12180 |
140 |
260 |
±0.15mm |
|
5/8" |
10 |
16 |
15.9*23.6 |
160 |
2320 |
640 |
9280 |
165 |
295 |
±0.15mm |
|
3/4” |
12 |
19 |
18.9*24.6 |
140 |
2030 |
560 |
8120 |
195 |
315 |
±0.2mm |
|
1” |
16 |
25 |
25.4*34 |
105 |
1520 |
420 |
6090 |
256 |
450 |
±0.2mm |
